Sammys Trench System Arma Reforger Mod

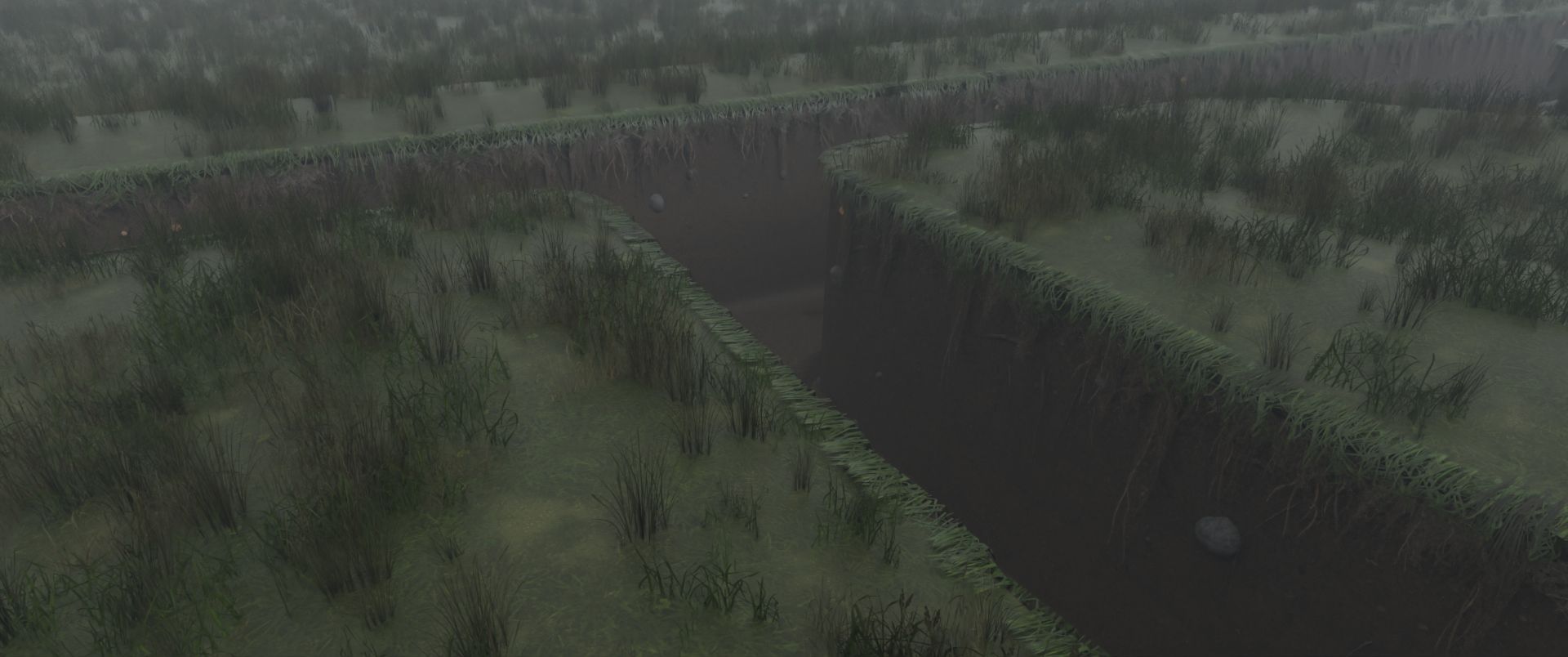

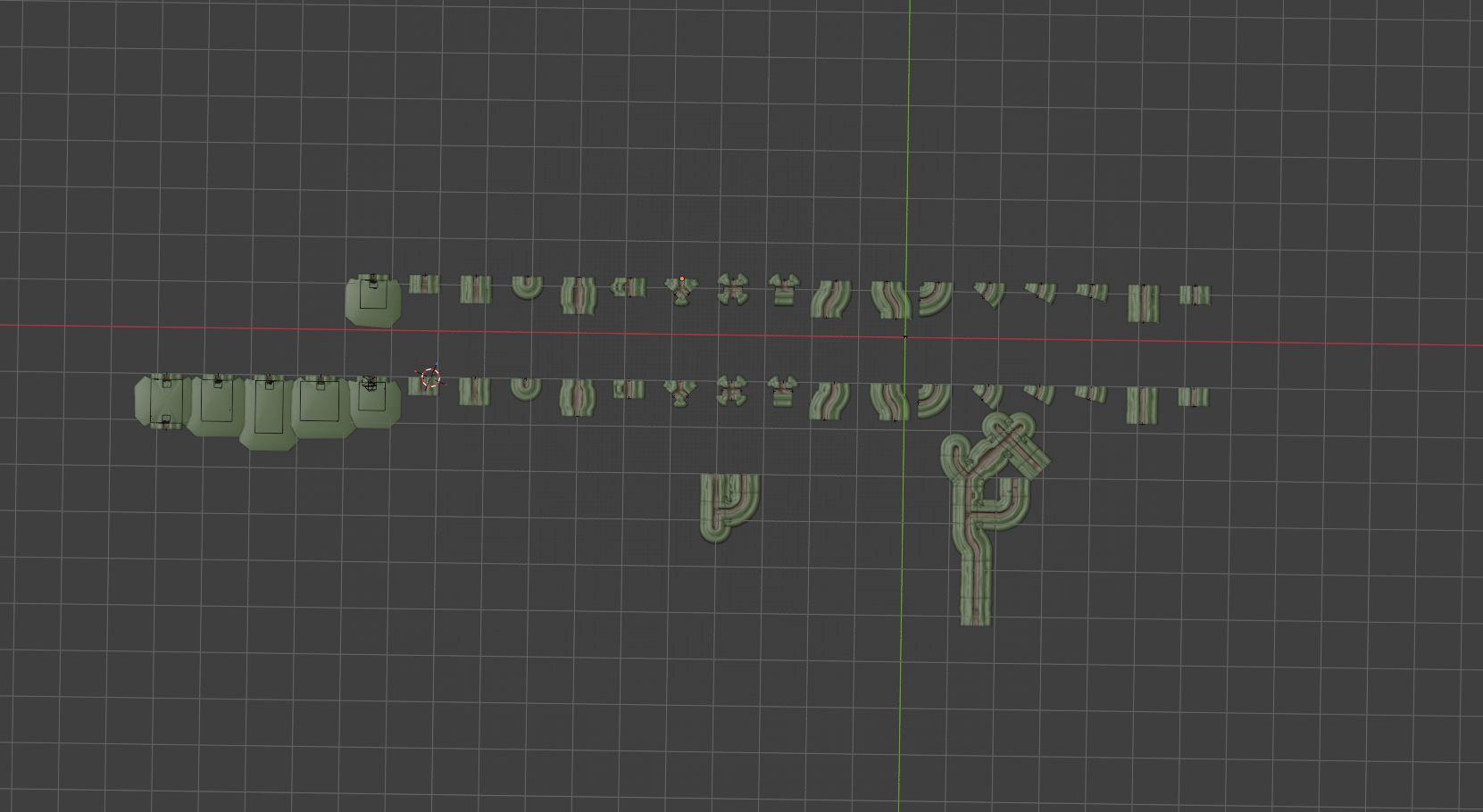

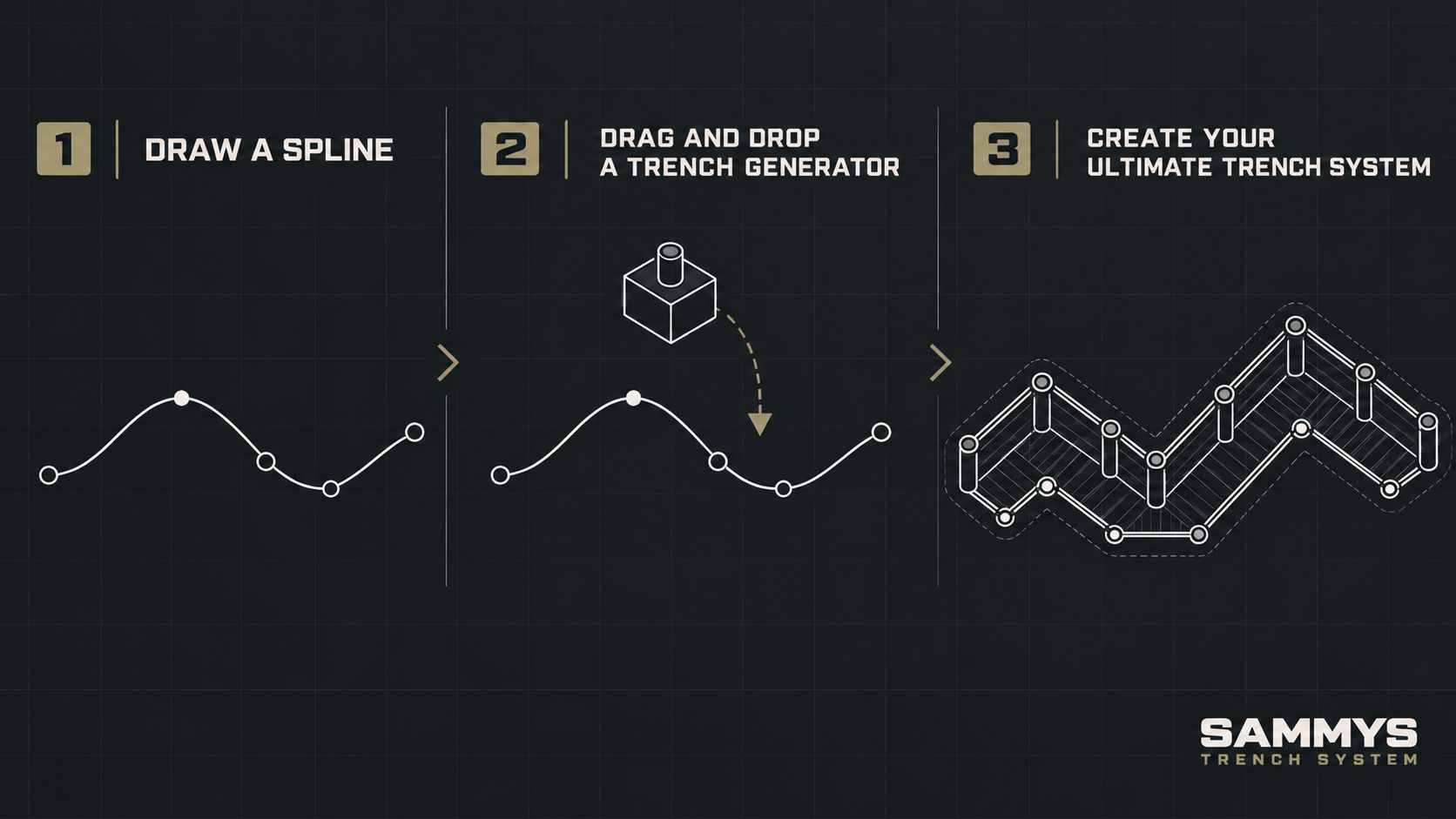

SAMMYS TRENCH SYSTEM A modular trench kit plus a World Editor generator: draw a line, attach a generator, and a fully built, self-dug trench appears along it. A build-time tool for map makers in the Enfusion Workbench. The generator only runs in the editor; the trenches are ordinary prefabs and the digging is baked into your terrain. WORK IN PROGRESS: CROSSINGS Automatic X junctions (lines crossing) and T/Y junctions (a line ending against another) are still a big WIP and can bug out quite a bit: gaps, odd rebuilds, open arms. Straight runs, bends, branches and hand-placed modules are solid. If a junction misbehaves, nudge a point on the newer line, place the junction by hand, or turn Auto Crossings off. QUICK START 1. Add Sammys Trench System as a dependency of your world project. 2. Create a SplineShapeEntity or PolylineShapeEntity and click your trench line onto the terrain. 3. From Prefabs/WEGenerators/Trenches drag a TG_Trench_ prefab onto the shape in the Hierarchy (it must be a child of the shape). 4. Done. The trench builds and digs itself. Move a point and it rebuilds; draw downhill and modules tilt with the slope. PRESETS - 01: plain fire trench, end cap and exit ramp. - 02_Wiggle: alternating left/right doglegs so nobody fires down the line. - 03_Bays: firing bays, wide bays, MG nests and funk holes mixed in. - 04_Frontline: the full mix, mostly traverses plus bays, MG nests, funk holes, crossing points. - 05_Strongpoint: half traverses, heavy on MG nests, bays and funk holes. - 06_Comms: rear communication trench, straights, ramps at both ends. Each has a _Sunken twin. Prefabs/WEGenerators/Trenches_NoDig has all twelve with terrain digging off by default. ATTRIBUTES - Ends: end cap, 4 m or 6 m ramp, or nothing. - Pattern: wiggle share, variant chance, seed. - Terrain Sculpting: on by default, each module digs about 2.25 m deep. Untick it and the ground goes back to grade; tick to re-dig. - Fitting: follow slope, socket lock distance (2.5 m), anchored end. - Crossings: auto X / T / Y junctions (WIP). CONNECTING - Branch: start a line within 2.5 m of a free socket facing your line (trench end, junction arm, dugout door) and it locks on. - Tee / Cross: end a line against another or cross it at about 90 degrees and a junction is cut in (WIP). The older line keeps its layout. - Free junction arms get an end cap until a line locks on. - Move a hand-placed module and lines locked to it follow. Every module shares one connector profile, so anything joins anything. MODULES (Standard and Sunken) - Straights 2, 4 and 8 m plus visual variants - Bends 15, 30, 45, 60, 90 degrees - Doglegs 8 m left and right - Firing bay, wide bay, MG nest, crossing point - Funk hole 8 m (Standard for now) - T, X, Y junctions and 45 degree skew tees - End cap, ramps 4 m and 6 m 4 LODs, walkable colliders with dirt and grass surfaces, a grassy sod lip with hanging roots, and each module digs its own hole when placed by hand. DUGOUTS (place by hand) Single, small, L-shaped blast bend, large common room, barracks, command post, aid post, ammo store, a 12 m walk-through gallery that sits in the line, and a Sunken shelter. Timber framed with log ceilings and furniture, real interiors with indoor lighting and sound. They dig their own entrance; start a trench line at the doorway and it locks on. VEHICLE PITS (place by hand) Tank hull-down, APC revetment, SPG pit with a crew trench, and a covered shelter. Each has a drive-in ramp and digs itself. STANDARD VS SUNKEN Standard: open shells on dug ground, lightest. Sunken: closed tubs with their own floor, for rock, steep ground or no sculpting. TIPS - One generator per line. Draw the main line first, then branch. - Edited the terrain? Nudge a point to re-dig. - 4 m rhythm: round metre lines give the cleanest results. - Keep crossings near 90 degrees with straight run either side. Feel free to edit materials to match your scene.
